Introduction to HPC

High Peformance Computing (HPC) refers to the aggregation of computing resources (i.e. supercomputers or clusters) to achieve performance far greater than a single workstation or server. By the end of this section, you should be able to:

Describe basic HPC architecture
Log in to a remote HPC system at TACC
Navigate the TACC file systems
Transfer files to and from TACC systems

Basic HPC System Architecture

As you prepare to use TACC systems for this workshop, it is important to understand the basic architecture. We can think of an HPC system as a very large and complicated laboratory instrument. Users need to learn how to:

Interface with it / push the right buttons (Linux)
Load samples (transfer data)
Run experiments (submit batch jobs)
Interpret the results (perform data analysis / vis)

IMPORTANT: Login vs. Compute Nodes

An HPC system has login nodes and compute nodes. We cannot run applications on the login nodes because they require too many resources and will interrupt the work of others. Instead, we must submit a job to a queue to run on compute nodes.

Systems Available at TACC

Clusters

Frontera: The fastest academic supercomputer in the world, providing computational capability that makes larger, more complex research challenges possible.
Vista: Vista expands TACC’s capacity for AI and ensures that the broadscience, engineering, and education research communities have access to the most advanced computing and AI technologies.
Stampede3: The newest strategic resource advancing NSF’s supercomputing ecosystem for the nation’s open science community.
Lonestar6: Supporting Texas researchers in providing simulation, data analysis, visualization, and AI/machine learning.
Jetstream2: A user-friendly, scalable cloud environment with reproducible, sharable computing on geographically isolated clouds.

Storage Systems

Corral: Storage and data management resource designed and optimized to support large-scale collections and a collaborative research environment.
Ranch: Long-term data archiving environment designed, implemented, and supported to provide storage for data sets of the TACC user community.
Stockyard: Global file system at the center of TACC’s system ecosystem that supports data-driven science by providing online storage of large datasets, and offers migration for further data management and archiving.

File Systems

The account-level environment variables $HOME, $WORK, and $SCRATCH store the paths to directories that you own on each of these file systems.

File System	Quota	Key Features
`$HOME`	25GB 200,000 files	Backed up. Recommended Use: scripts and templates, environment settings, compilation, cron jobs
`$WORK`	1TB 3,000,000 files	NOT backed up. Recommended Use: software installations, original datasets that can’t be reproduced.
`$SCRATCH`	No quota assigned	NOT backed up. Recommended Use: Reproducible datasets, I/O files: temporary files, checkpoint/restart files, job output files

Files in $SCRATCH are subject to purge if access time is more than 10 days old.

Create an Account

Authentication

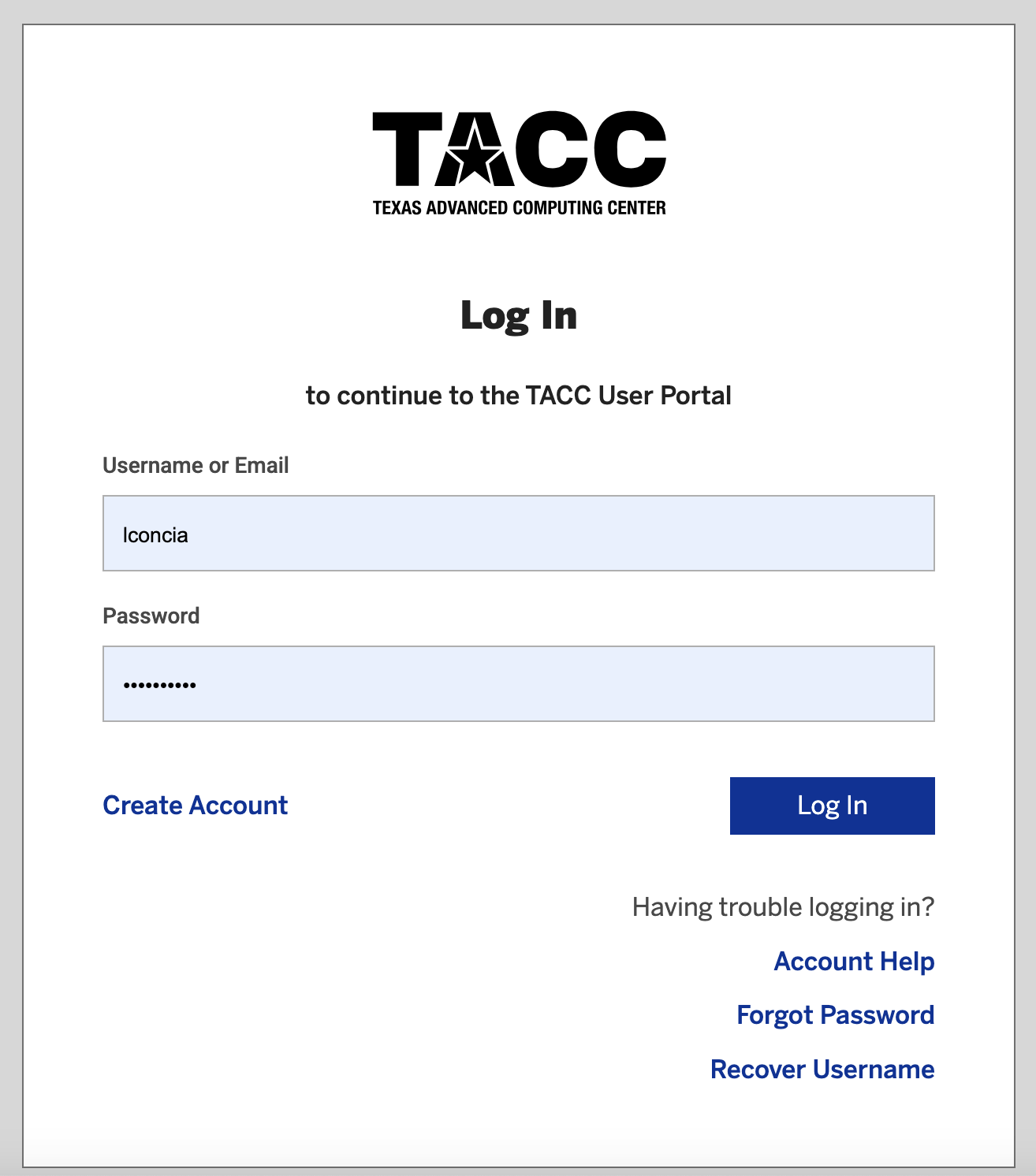

To log in to TACC systems and participate in this workshop, you will need a TACC account and must have set up multi-factor authentication using a token app or SMS. You can do this by visiting the TACC portal:

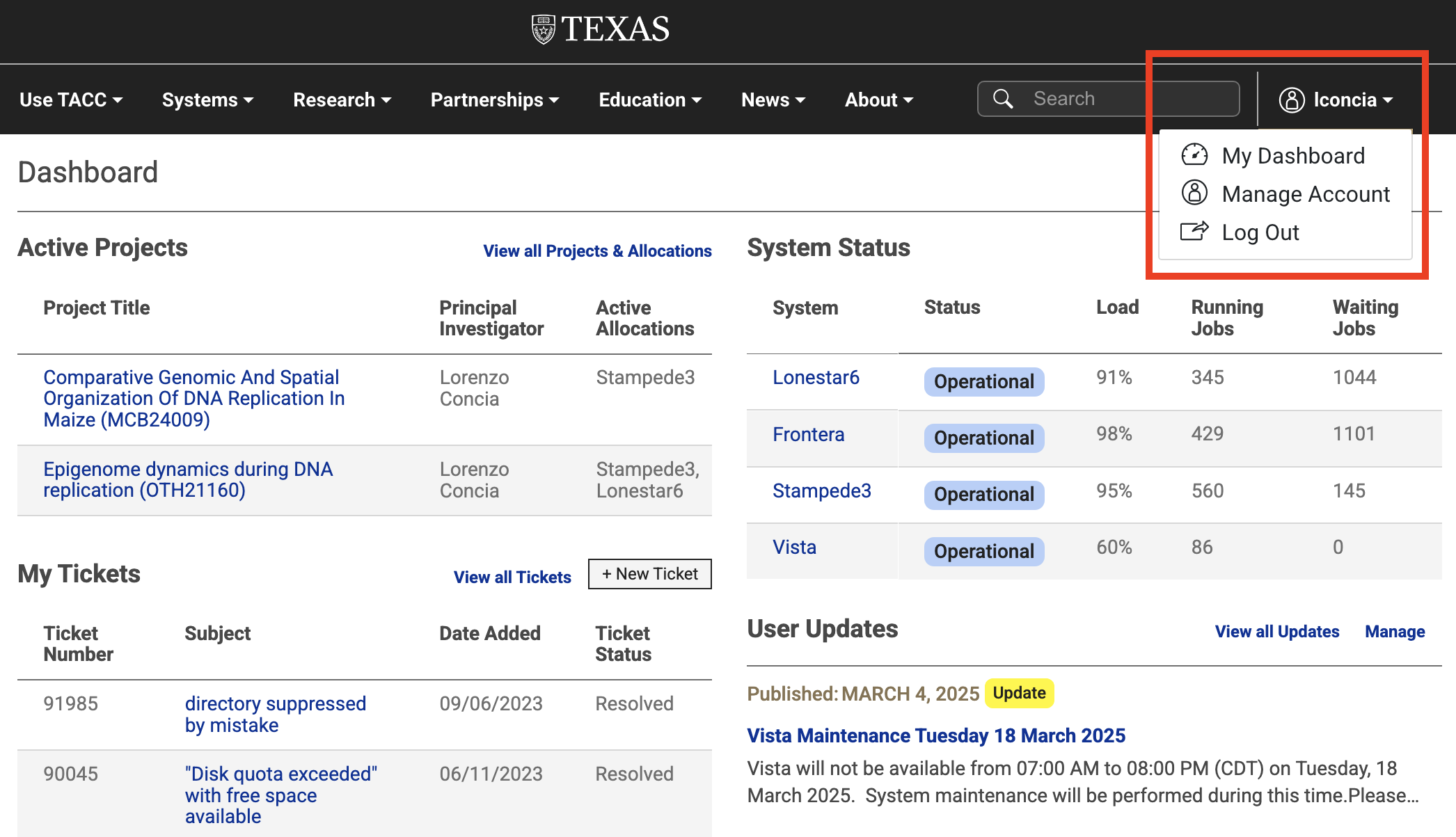

Then clicking on your username at the top right of the page:

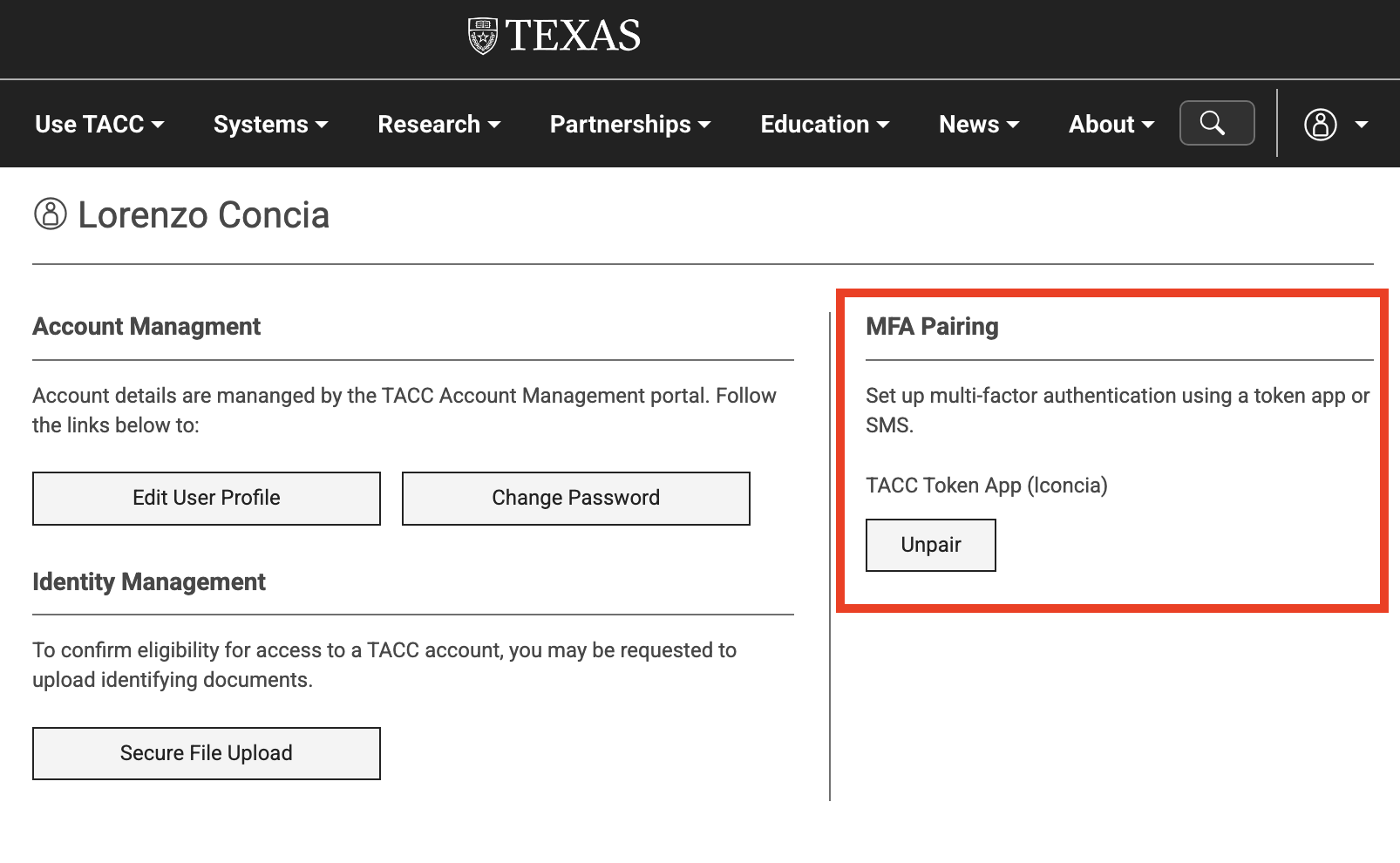

And selecting “Manage Account”, and, under MFA Pairing, clicking to pair:

You can find more details about MFA Pairing here.

Tip

In your TACC portal, you can also view your allocations, open tickets, and the systems along with their current status.

Connecting to the Machines

This training will be fully interactive. Participants are strongly encouraged to follow along on the command line. In this workshop, for commands on the local system we will use:

[local]$

And commands on remote systems will resemble:

[frontera]$

or:

[vista]$

Connecting to Frontera

To log in to Frontera, follow the instructions for your operating system below.

Mac / Linux (Use Terminal)

Open the application ‘Terminal’ and:

[local]$ ssh username@frontera.tacc.utexas.edu

To access the system:

1) If not using ssh-keys, please enter your TACC password at the password prompt
2) At the TACC Token prompt, enter your 6-digit code followed by <return>.

(enter password)
(enter 6-digit token)

Windows (Use WSL2 or an SSH Client)

Open the application WSL2 :

[local]$ ssh username@frontera.tacc.utexas.edu

To access the system:

1) If not using ssh-keys, please enter your TACC password at the password prompt
2) At the TACC Token prompt, enter your 6-digit code followed by <return>.

(enter password)
(enter 6-digit token)

Or open an SSH client like PuTTY:

Open the application 'PuTTY'
enter Host Name: frontera.tacc.utexas.edu
(click 'Open')
(enter username)
(enter password)
(enter 6-digit token)

Successful Login to Frontera

If your login was successful, your terminal will look something like this:

------------------------------------------------------------------------------
                   Welcome to the Frontera Supercomputer
      Texas Advanced Computing Center, The University of Texas at Austin
------------------------------------------------------------------------------

              ** Unauthorized use/access is prohibited. **

If you log on to this computer system, you acknowledge your awareness
of and concurrence with the UT Austin Acceptable Use Policy. The
University will prosecute violators to the full extent of the law.

TACC Usage Policies:
http://www.tacc.utexas.edu/user-services/usage-policies/
______________________________________________________________________________

Welcome to Frontera, *please* read these important system notes:

--> Frontera user documentation is available at:
       https://portal.tacc.utexas.edu/user-guides/frontera

---------------------- Project balances for user lconcia ----------------------
| Name           Avail SUs     Expires |                                      |
| TACC-SCI          100918  2025-06-30 |                                      |
------------------------ Disk quotas for user lconcia -------------------------
| Disk         Usage (GB)     Limit    %Used   File Usage       Limit   %Used |
| /home1              2.5      25.0     9.96         4974      200000    2.49 |
| /work2            698.0    1024.0    68.16       311422     3000000   10.38 |
| /scratch1           0.0       0.0     0.00          146           0    0.00 |
| /scratch2           0.0       0.0     0.00            1           0    0.00 |
| /scratch3           0.0       0.0     0.00            1           0    0.00 |
-------------------------------------------------------------------------------

A Note About Quotas

The welcome message you receive upon successful login to Frontera has useful information for you to keep track of. Especially of note is the breakdown of disk quotas for your account, as you can keep an eye on whether your usage is nearing the determined limit.

Once your usage is nearing the quota, you’ll start to experience issues that will not only impact your own work, but also impact the system for others. For example, if you’re nearing your quota in $WORK, and your job is repeatedly trying (and failing) to write to $WORK, you will stress that file system.

Tip

Another useful way to monitor your disk quotas (and TACC project balances) at any time is to execute:

[frontera]$ /usr/local/etc/taccinfo

Data Management

Creating and Changing Folders

On a Windows or Mac desktop, our present location determines what files and folders we can access. I can “see” my present location visually with the help of the graphic interface - I could be looking at my Desktop, or the contents of a folder, for example. In a Linux command-line interface, we lack the same visual cues to tell us what our location is. Instead, we use a command - pwd (print working directory) - to tell us our present location. Try executing this command on Frontera:

[frontera]$ pwd
/home1/03302/lconcia

This home location on the Linux filesystem is unique for each user, and it is roughly analogous to C:\Users\username on Windows, or /Users/username on Mac.

To see what files and folders are available at this location, use the ls (list) command:

[frontera]$ ls

I have no files or folders in my home directory yet, so I do not get a response. We can create some folders using the mkdir (make directory) command. The words ‘folder’ and ‘directory’ are interchangeable:

[frontera]$ mkdir folder1
[frontera]$ mkdir folder2

[frontera]$ ls
folder1 folder2

Now we have some folders to work with. To “open” a folder, navigate into that folder using the cd (change directory) command. This process is analogous to double-clicking a folder on Windows or Mac:

[frontera]$ pwd
/home1/03302/lconcia
[frontera]$ cd folder1
[frontera]$ pwd
/home1/03302/lconcia/folder1

Use ls to list the contents. What do you expect to see?

[frontera]$ ls

There is nothing there because we have not made anything yet. Next, we will navigate back to the home directory. So far we have seen how to navigate “down” into folders, but how do we navigate back “up” to the parent folder? There are different ways to do it. For example, we could use a shortcut, .., which refers to the parent folder - one level higher than the current location:

[frontera]$ cd ..
[frontera]$ pwd
/home1/03302/lconcia

We are back in our home directory. Instead, we could specify the complete path of where we want to go, in this case cd /home1/03302/lconcia. Finally, let’s remove the directories we have made, using rmdir to remove our folder folder1 and any contents. The -r command line option recursively removes subfolders and files located “down” the parent directory. -r is required for folders.

[frontera]$ rm -r folder1
[frontera]$ ls
folder2

Transferring Files to and from Frontera

To practice transferring files to Frontera’s $WORK and $SCRATCH, we need to identify the path to our $WORK and $SCRATCH directory. To identify these paths, we can use helpful command shortcuts.

To identify the path to our $WORK directory, we can use cd $WORK or the helpful shortcut cdw:

[frontera]$ cdw
[frontera]$ pwd
/work2/03302/lconcia/frontera

To identify the path to our $SCRATCH directory, we can use cd $SCRATCH or the helpful shortcut cds:

[frontera]$ cds
[frontera]$ pwd
/scratch1/03302/lconcia

Copying files from your local computer to Frontera’s $WORK requires the scp command. This should be available in your local Terminal (Mac/Linux) or WSL2 (Windows):

[local]$ scp my_file lconcia@frontera.tacc.utexas.edu:/work2/03302/lconcia/frontera
(enter password)
(enter token)

In this command, you specify the name of the file you want to transfer (my_file), the username (lconcia), the hostname (frontera.tacc.utexas.edu), and the path you want to put the file (/work2/03302/lconcia/frontera). Take careful notice of the separators including spaces, the @ symbol, and the colon.

Copying files from your local computer to Frontera’s $SCRATCH using scp:

[local]$ scp my_file lconcia@frontera.tacc.utexas.edu:/scratch1/03302/lconcia/frontera
(enter password)
(enter token)

Copy files from Frontera to your local computer using the following:

[local]$ scp lconcia@frontera.tacc.utexas.edu:/work2/03302/lconcia/frontera/my_file ./
(enter password)
(enter token)

Note

If you wanted to copy my_file from $SCRATCH, the path you would specify after the colon would be /scratch1/03302/lconcia/frontera/my_file.

Instead of files, full directories can be copied using the “recursive” flag (scp -r ...). See additional example scp usage here.

EXERCISE

Download the file firststeps.zip to your local laptop.
Login to Frontera.
Identify your $WORK directory path using cdw and pwd.
From your local computer, copy the file firststeps.zip to Frontera. (You will need to know where the file firststeps.zip was downloaded on your local computer and navigate to this folder.)
Login to Frontera, navigate to your $WORK, and unzip the file using unzip firststeps.zip.

Download the file firststeps.zip.

Login to Frontera:

[local]$ ssh username@frontera.tacc.utexas.edu
(enter password)
(enter 6-digit token)

Identify your $WORK directory path using cdw and pwd.

[frontera]$ cdw
[frontera]$ pwd
/work2/03302/lconcia/frontera
[frontera]$ logout

From your local computer, copy the file firststeps.zip to Frontera. (You will need to know where the file firststeps.zip was downloaded on your local computer and navigate to this folder.)
```
[local]$ scp firststeps.zip lconcia@frontera.tacc.utexas.edu:/work2/03302/lconcia/frontera
(enter password)
(enter token)
```

Login to Frontera, navigate to your $WORK, and unzip the file using unzip firststeps.zip.

[local]$ ssh username@frontera.tacc.utexas.edu
(enter password)
(enter 6-digit token)
[frontera]$ cdw
[frontera]$ unzip firststeps.zip

Hint

Avoid multiple logins by using wget to download files from the internet directly to Frontera.

Tips for Success

Read the documentation.

Learn node schematics, limitations, file systems, rules
Learn about the scheduler, queues, policies
Determine the right resource for the job

User Responsibility on Shared Resources

HPC systems are shared resources. Your jobs and activity on a cluster, if mismanaged, can affect others. TACC staff are always available to help.

Review of Topics Covered

Command	Effect
`pwd`	print working directory
`ls`	list files and directories
`mkdir dir_name`	make a new directory
`cd dir_name/`	navigate into a directory
`rm -r dir_name/`	remove a directory and its contents
`.` or `./`	refers to the present location
`..` or `../`	refers to the parent directory
`cd $WORK`, `cdw`	Navigate to `$WORK` file system
`cd $SCRATCH`, `cds`	Navigate to `$SCRATCH` file system
`scp local remote`	Copy a file from local to remote
`scp remote local`	Copy a file from remote to local
